EBKE 28A 48V 52V 1000W Controller Waterproof Wire Electrical Control Set

Please note: Currently available display screen types can only use EBKE's original configuration, and compatibility with other displays is uncertain.

Open function (set through display screen)

1. Wheel diameter adjustable 20-29 inches

2. Voltage selection: 36V/48V/52V

3. Set the number of speed measuring magnets to 1-6

4. The maximum speed limit is set to a maximum of 100 (the maximum speed cannot exceed the rated speed corresponding to the motor)

5，  PAS magnet quantity selection (5/8/12)

6. Three operating modes to choose from:

Only allow throttle/PAS/throttle and PAS to run simultaneously

7. Cruise function: Automatically cruise after 8 seconds at a speed greater than 15KMH, brake or turn the throttle to cancel cruise

8，  6KM boost function (press and hold the down button on the display screen to start, release and cancel)

9. Add an external speed measurement plug (for users who do not have a speed measurement cable inside certain motors)

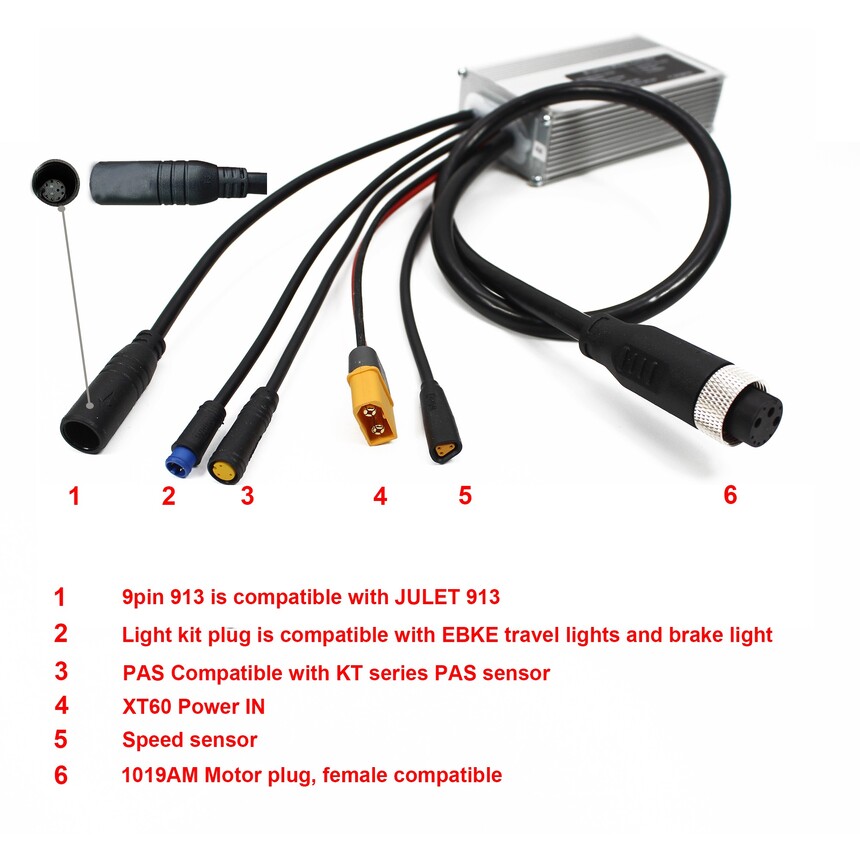

Controller plug instructions:

1. XT60 power plug

2. 1T5 cable plug

3. PAS waterproof 3-pin female plug

4. External speed measuring plug with irregular shape 3 inches

5. Headlight plug 4pin blue

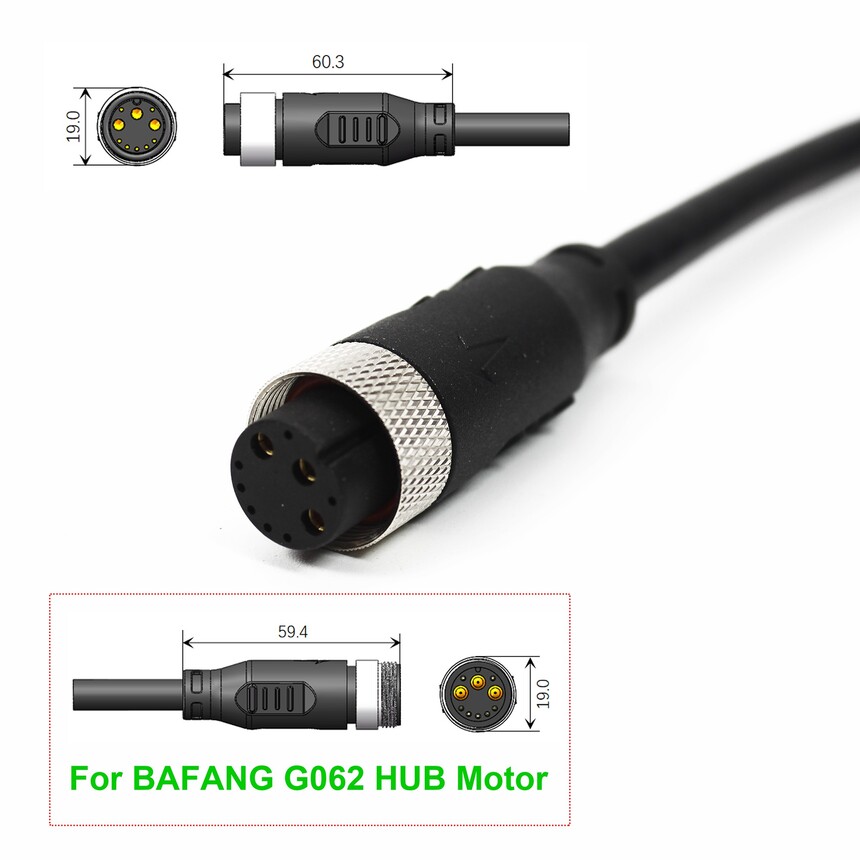

6. Motor plug female end (default 1019 model, compatible with some models of BAFANG G062 motors)

EBKE 36V 48V 52V 28A 1000W electric bicycle controller

Please note: Currently available display types can only use EBKE's original configuration, other displays are uncertain of compatibility.

Open function (via display Settings)

1, adjustable wheel diameter 20-29 inch

2, the voltage is selected 36V/48V/52V

3, the number of speed measuring magnets set 1-6

4, the maximum speed limit is set up to 100 (the maximum speed cannot exceed the rated speed of the motor)

5, PAS magnet number selection (5/8/12)

6, 3 operating modes are available:

Only throttle/Only PAS/ Both throttle and PAS are allowed to run at the same time

7, cruise function: the speed is greater than 15KMH 8 seconds after automatic cruise, brake or turn the accelerator to cancel cruise

8, 6KM boost function (long press the downward button of the display to start, release and cancel)

9, increase the external speed detection plug (for some motor without speed measurement line users)

Controller plug description:

1, XT60 power plug

2, 1T5 cable plug

3, PAS waterproof 3pin female plug

4, external speed plug shaped 3pin

5, headlight plug 4pin blue

6, motor plug (default model 1019, compatible with some models of BAFANG G062)

Made with high-quality materials for greater durability

Sine wave controller effectively reduces noise and avoids sudden changes in current

Waterproof connector, avoid burning out the circuit during use

It is compact, lightweight, and easy to carry

Specifications:

Communication protocol: OMD2

Maximum current: 28 ± 1A

Strength: 500-1200 watts

Rated voltage: DC36V/48V/52V

Speed setting: 1-4.2V

Rated current: 22A

Braking input: Low level

Low voltage protection: DC30/40/42 ± 0.5V

Material: Aluminum+Plastic

Color: As shown in the picture

Controller size: 12 * 6.3 * 3.3cm (approximately)

Weight: 480 grams

Model: Sine wave vector controller

Description:

*Made of high quality material, more durable

*Sine wave controller can effectively reduce noise and avoid sudden changes in current

*Waterproof Joint, to avoid burning circuit when using

*It's compact, light and easy to carry

Specification  :

*Communication protocol：OMD2

*Maximum current: 28±1A

*Power: 500-1200W

*Rated voltage: DC36V/48V/52V

*Speed setting: 1-4.2V

*Rated current: 22A

*Brake input: low level

*Low voltage protection: DC30/40/42±0.5V

*Material: Aluminum + Plastic

*Color: As picture shown

*Controller size: 12*6.3*3.3cm (Approx.)

*Weight: 480g

*Model: Sine wave vector controller

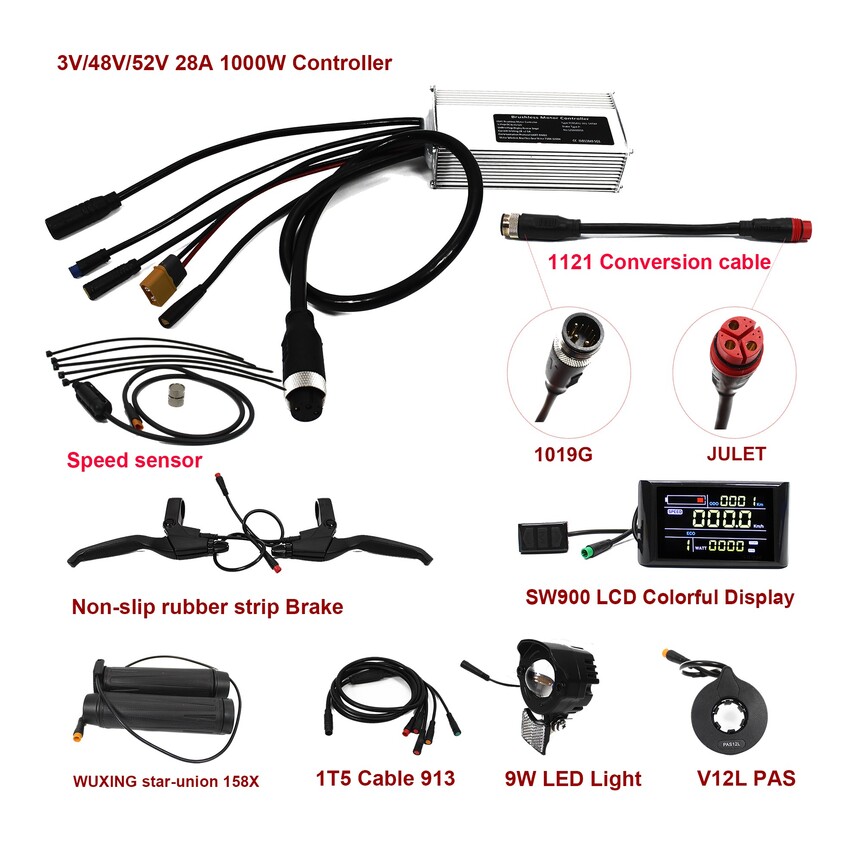

Packing list:

1. Controller x1

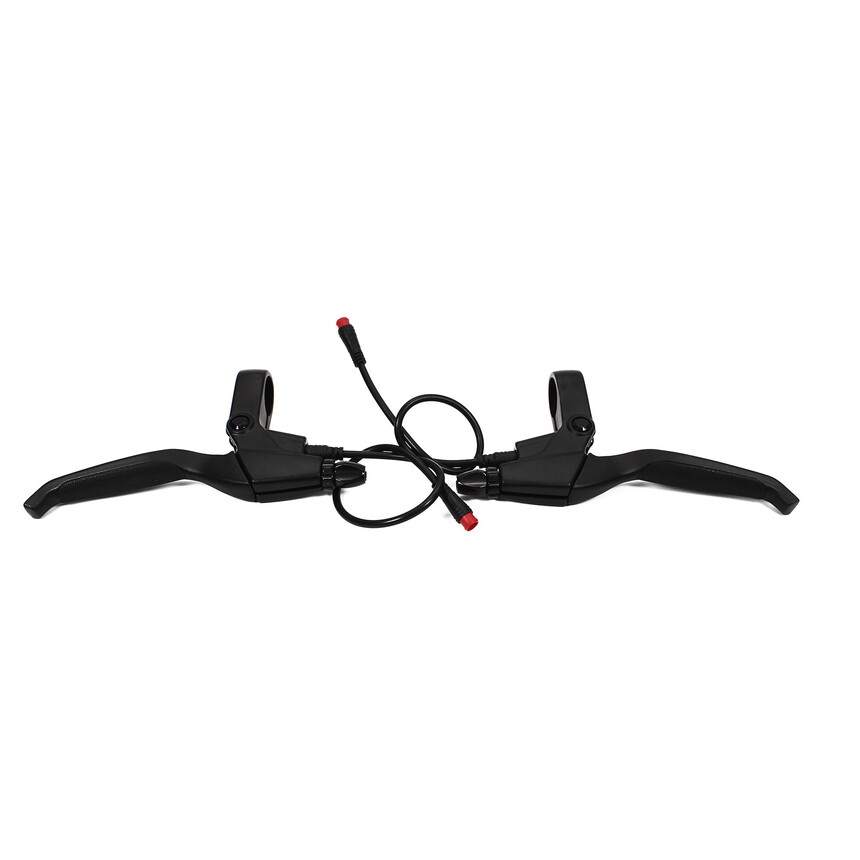

2. Brake lever x1

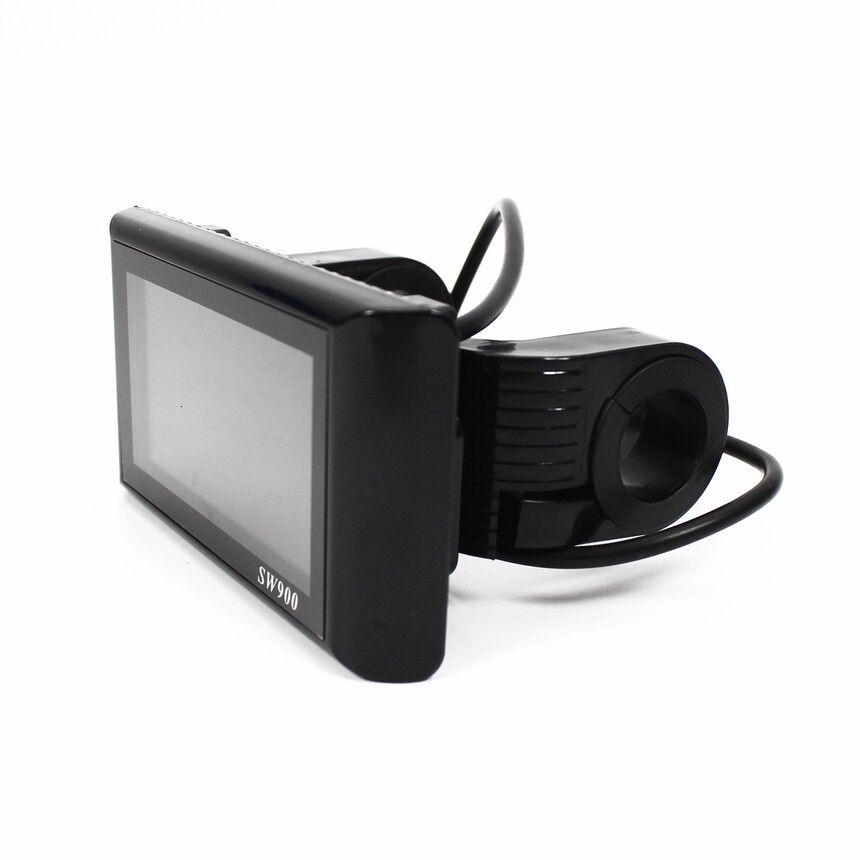

3. Display screen x1

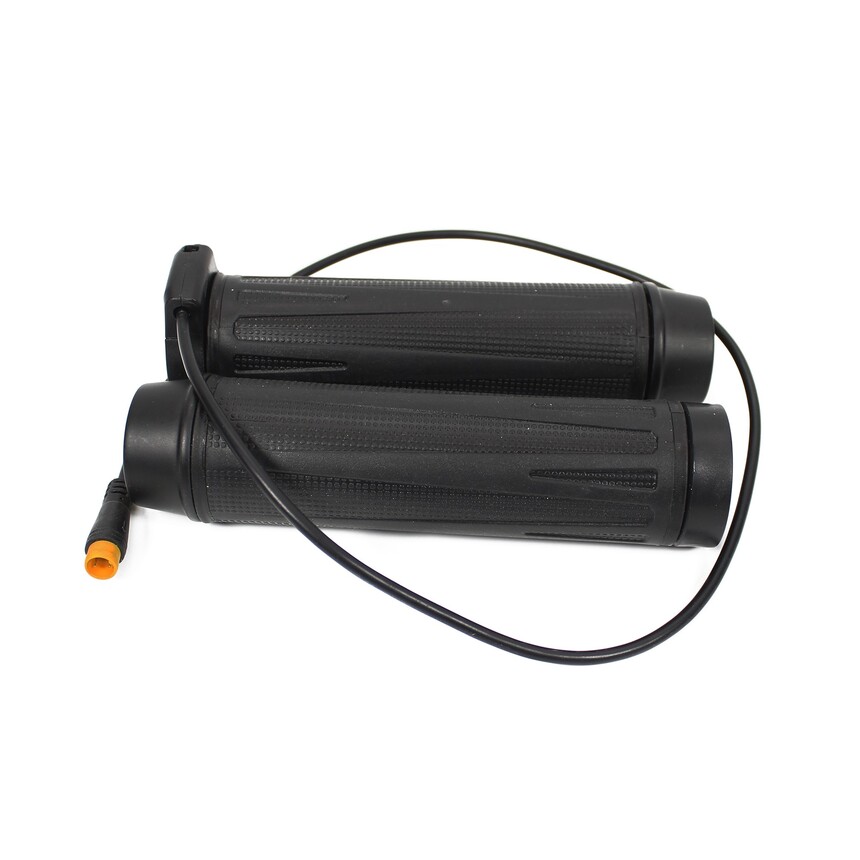

4. Throttle x1

5，  PASx1

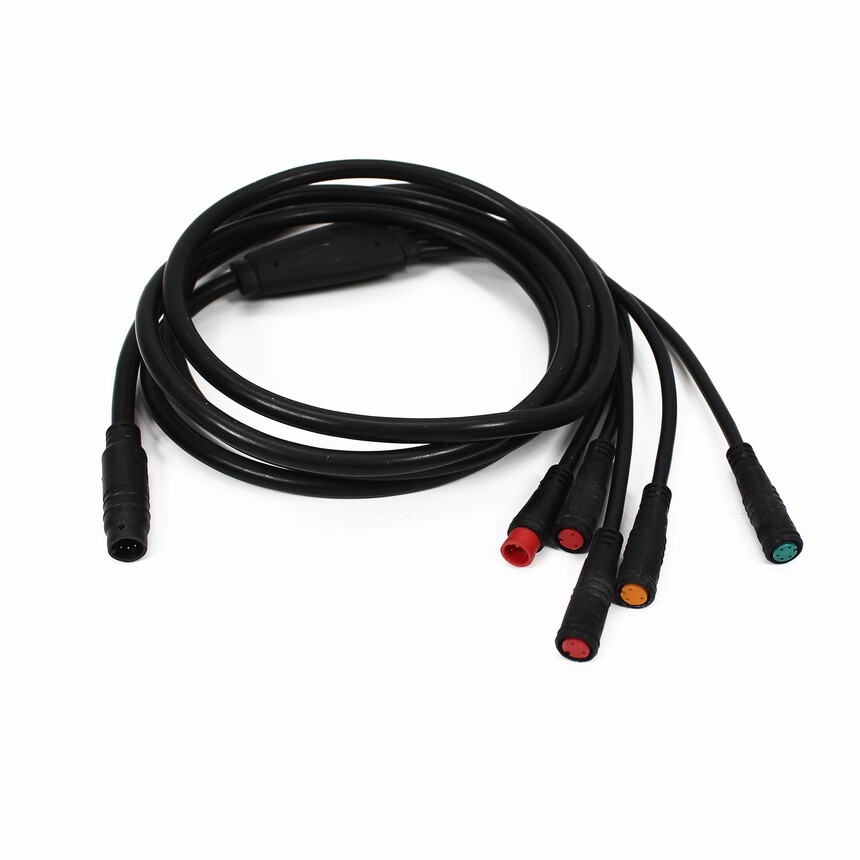

6，  1T5 mainline x1

7. Front light x1

8. External speed measurement cable x1 (an option that requires additional purchase)
