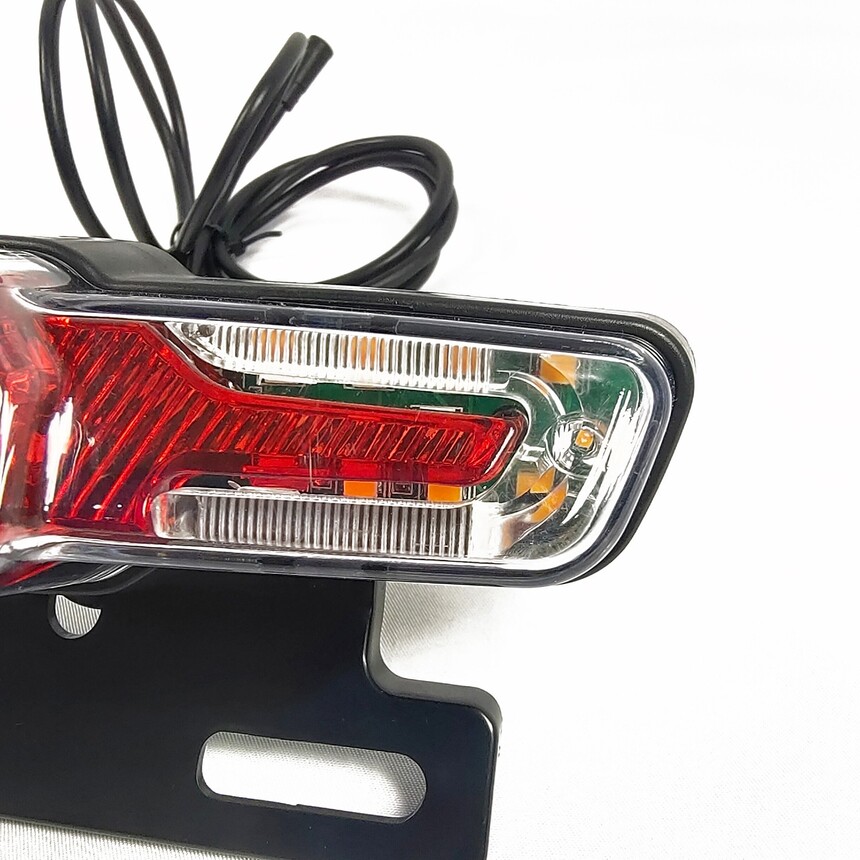

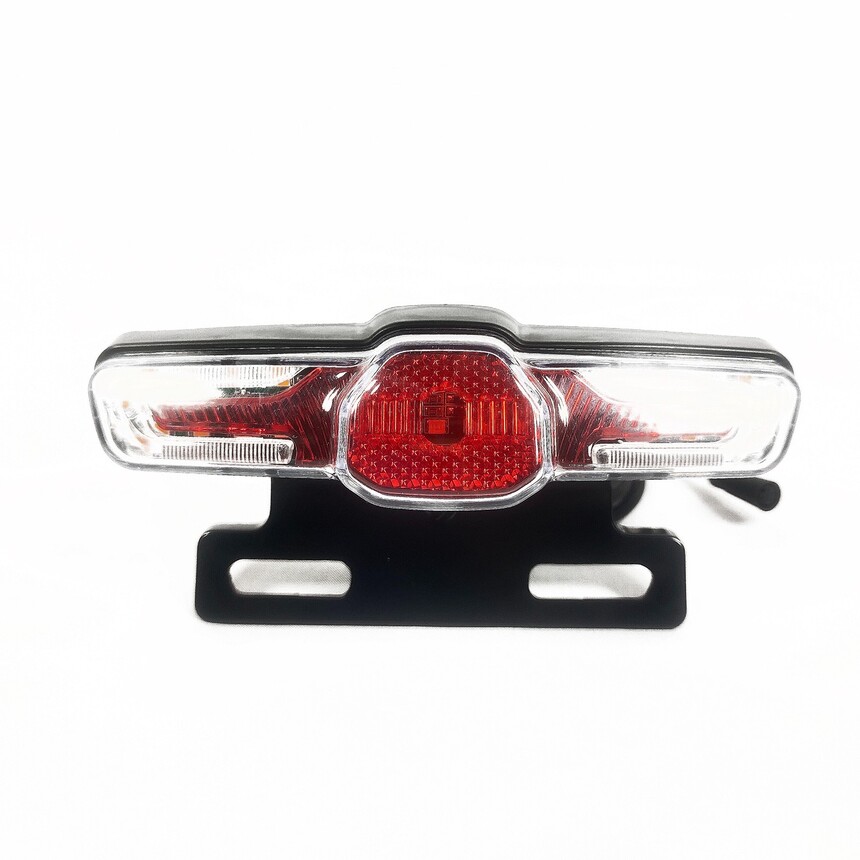

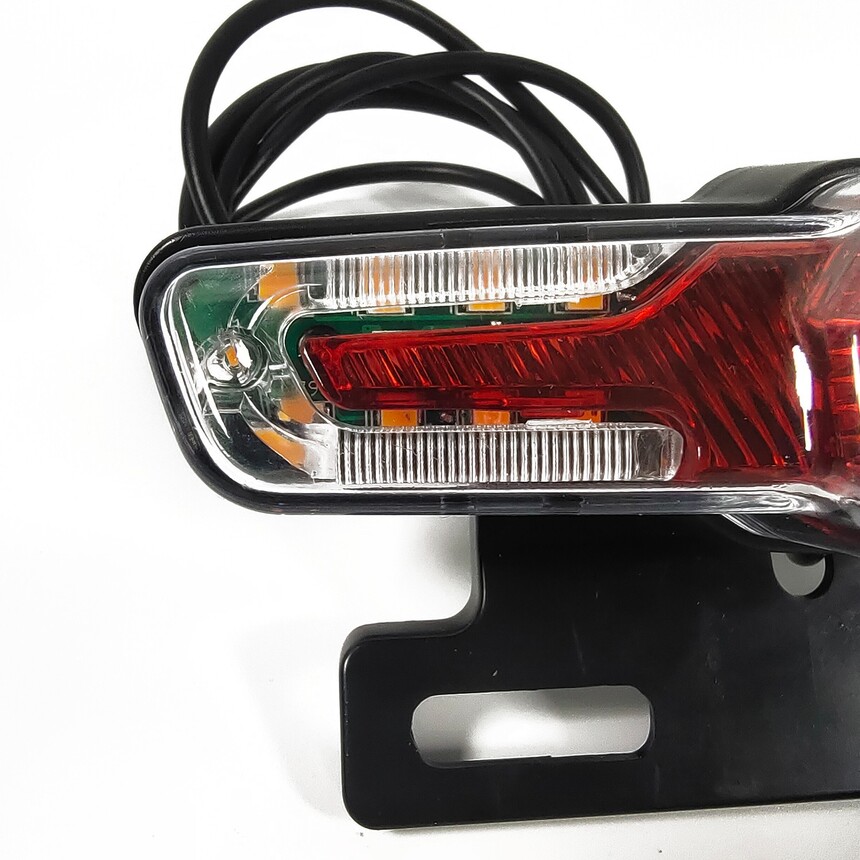

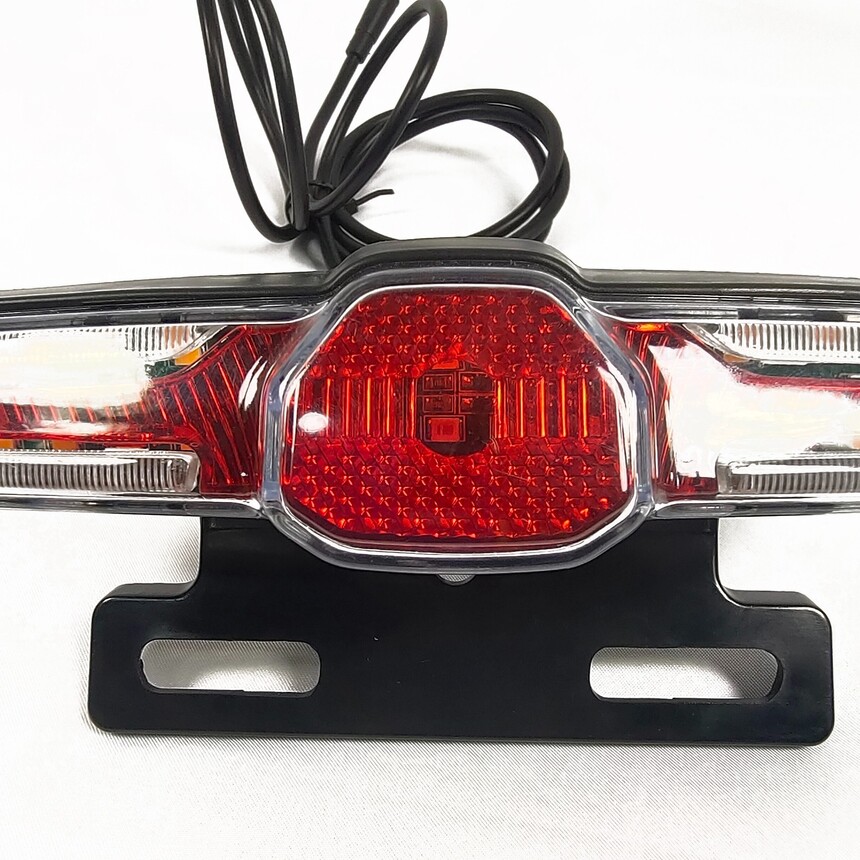

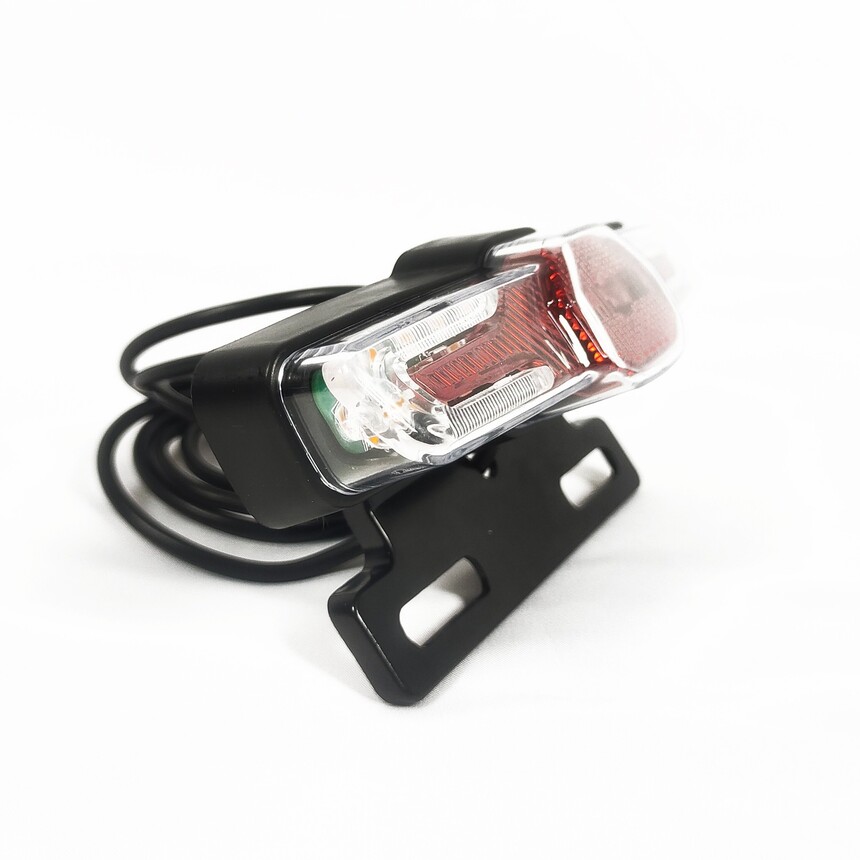

EBKE electric bicycle multifunctional rear light

Model EB05X

Function Introduction:

Red 6 LED driving lights,

Red 6 LED brake light,

Two yellow 9-LED flow effect turn signals.

Equipped with an electric license plate holder,

Install bolt holes with a distance of 60mm

Voltage range: 12V-72V (MAX 84V)

Material: ABS plastic

Rear light wire length: 142CM (6-pin anti water line EBKE light group specific)

Plug: MINI D2

Plug diameter: 8.8mm

DIY connection line sequence:

Red: Brake+

Black: GND

Yellow: Rear light+

Green: Turn right+

Blue: Turn left+

White: Brake-

Certification: National Standard CCC 2020-499-A-1301

Net weight of product: 150g

Size: 145 * 63 * 55mm
